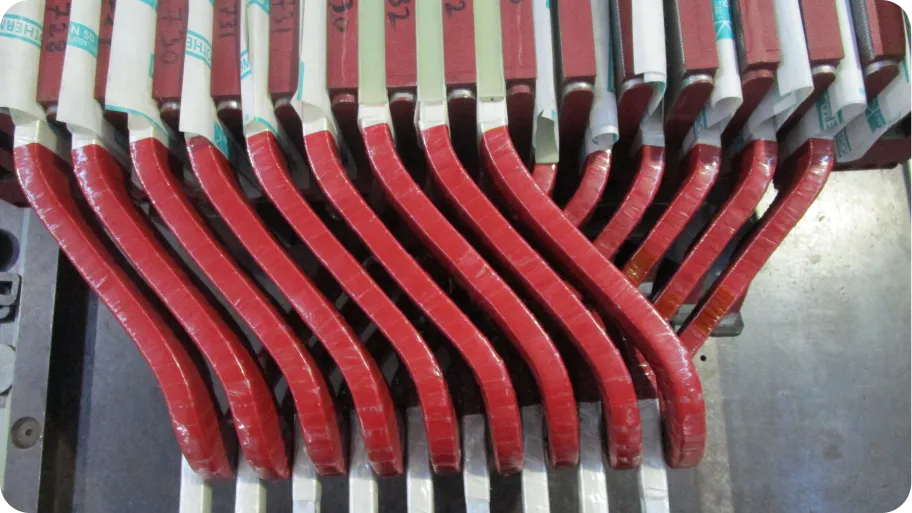

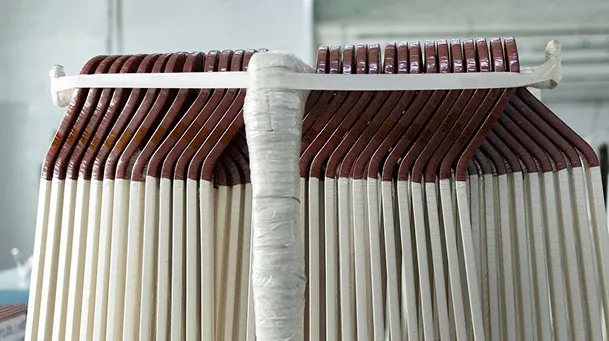

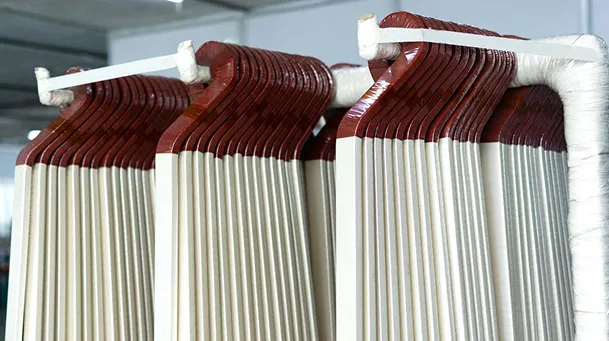

Our diamond coils are made in custom made jigs and fixtures for every order and checked in laser cut wooden mockup former, so that the first coil, the next coil and every other coil made measures just the same and fits exactly at our customers motor.

Coil types:

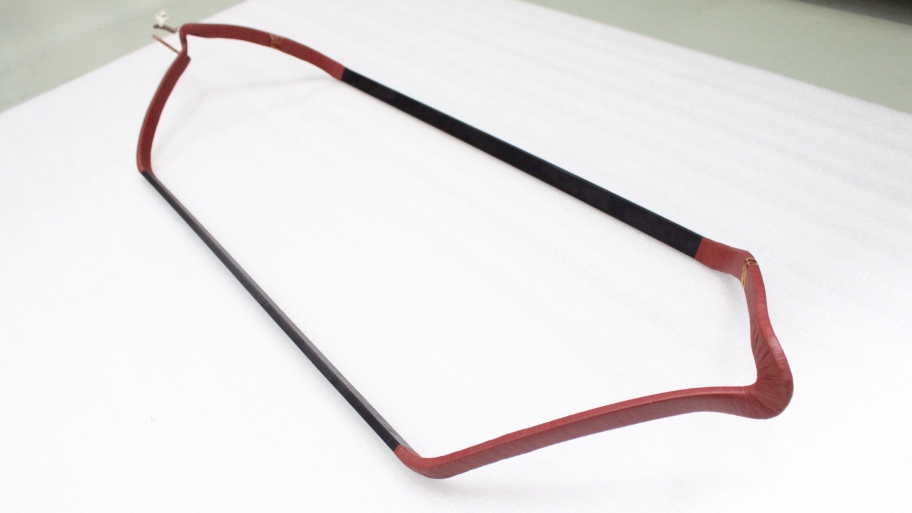

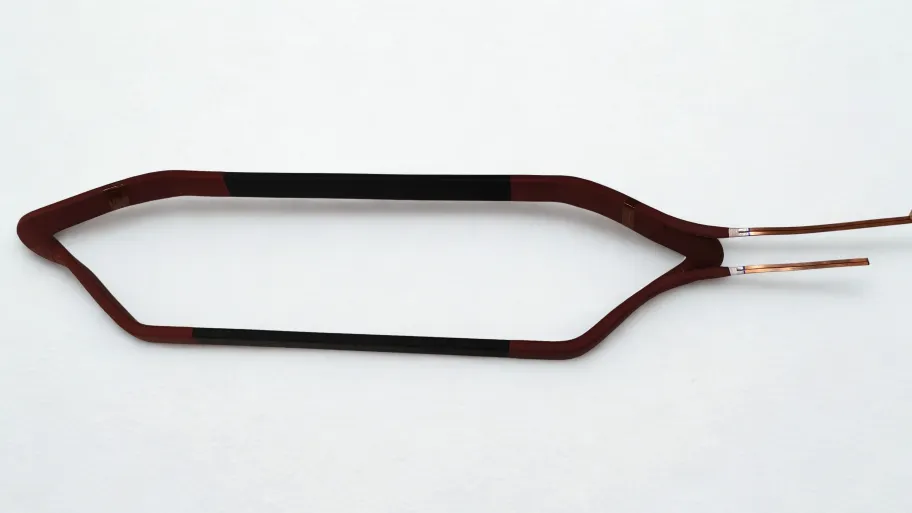

• Diamond coils
• Turn to turn overhang transposed diamond coils

Main wall Insulation system:

• Thermo reactive system / resin rich system
• Micalastic system – A resin poor system in which the insulated bars are heated under vacuum and impregnated in heated resin. The dipped bars are then packed in hydraulic pressed curing chamber
• Uncured micalastic system
• Special insulation system – Other than the above specified systems, We offer solutions for customer specific insulation systems.

Conductor insulation:

• Enamel with double/single Dacron
• Enamel with double/single glass
• Enamel with single Dacron + single glass
• Enamel with mica
• Enamel with mica + film
• Nomax

Main wall Insulation material:

• VPI
• Mica/glass
• Mica/film
• Mica/glass + film

Corona discharge protection:

• Corona shield tape / conductive tape
• Stress grading tape / semi conducting tape

Voltage range:

• 400 V to 16 KV

Testing and inspection:

In process inspection:

• HV/HF inter element test
• Surge test – among many other tests performed while processing

Final testing:

• Tan delta
• High voltage
• HV/HF test
• DCR
